MODULO 150 CHILD

SKU: 02160

244,00

MODULO 150 CHILD

SKU: 02160

244,00

INFLATABLE LIFEJACKET – SOLAS – MODULO CHILD – DAA

MODULO 150 CHILD
244,00

Description

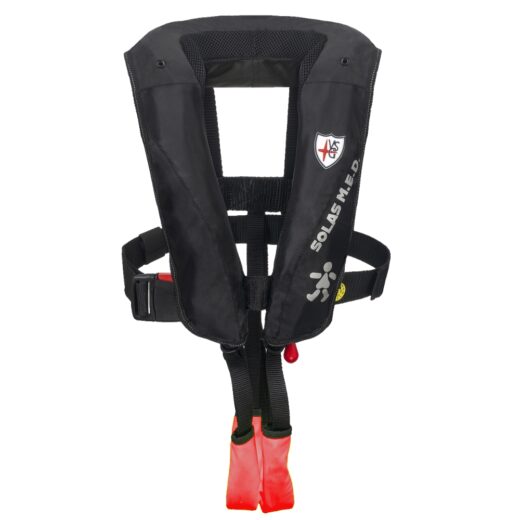

Inflatable life jacket for children. SOLAS M.E.D. approved and certified.
Double compartment buoyancy chamber
High strength fabric case
Equipped with Buddy System>br> Available with Double Automatic Activator (DAA)
With double crotch pad.
Designed for maximum freedom and mobility on board during navigation.

ACTIVATION SYSTEMS

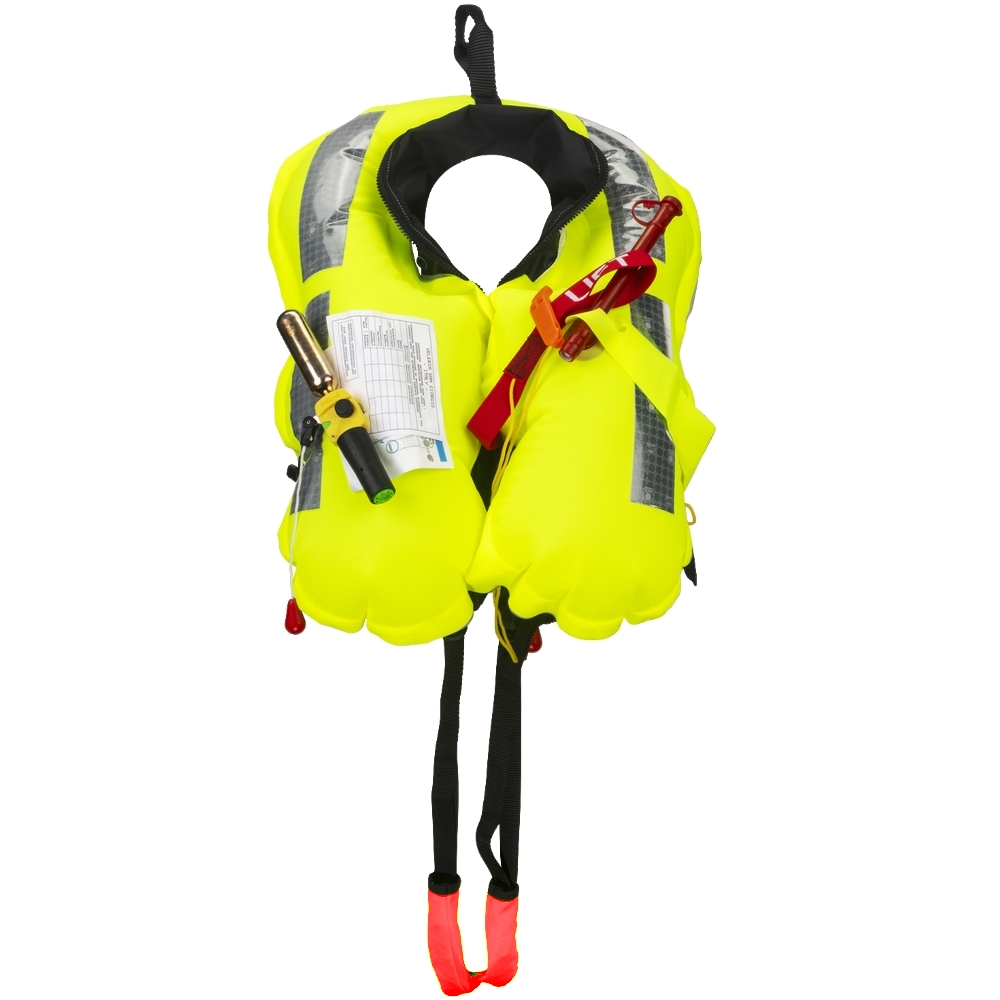

Automatic activation (self-inflating life jacket): in the event of a fall overboard, the system is submerged and automatically activates the inflation of the buoyancy chamber.

It is also possible to activate the life jacket manually.
Manual activation: the system is activated by pulling the appropriate lever.
Oral inflation: to inflate the chamber, simply blow into the oral tube. It is present in both self-inflating jackets and in those with exclusively manual activation.

The MODULO CHILD inflatable life jacket can be supplied with the following models:
DAA 2 x UML-MK5, automatic activator;

On all SOLAS VSG inflatable life jackets there are 2 oral tubes.
ACCESSORIES ON REQUEST: automatic emergency light

SPARE PART: VSG reset kit with 24g canister. Double crotch pad.

REVISION: The revision for this inflatable life jacket is mandatory every 12 months.

The case of our devices can be customised with writing or company logos.

In compliance with the LSA Code and SOLAS standards, life jackets must be equipped with Solas signal lights.

Certification

SOLAS M.E.D.

Real Buoyancy

100N

Size

Child

Supported Weight

15/43 Kg.

Chest Size

60/80 Cm.

Service

12 Months

C02 Cylinder

24 Gr. x 2

Activation

DAA

Activator Type

UML/HR

02160#ENG#G.pdf Scarica
02160#_#C#SOLAS M.E.D.MODULO B 2030.pdf Scarica
  • Description

    Inflatable life jacket for children. SOLAS M.E.D. approved and certified.
    Double compartment buoyancy chamber
    High strength fabric case
    Equipped with Buddy System>br> Available with Double Automatic Activator (DAA)
    With double crotch pad.
    Designed for maximum freedom and mobility on board during navigation.

    ACTIVATION SYSTEMS
    Automatic activation (self-inflating life jacket): in the event of a fall overboard, the system is submerged and automatically activates the inflation of the buoyancy chamber.

    It is also possible to activate the life jacket manually.
    Manual activation: the system is activated by pulling the appropriate lever.
    Oral inflation: to inflate the chamber, simply blow into the oral tube. It is present in both self-inflating jackets and in those with exclusively manual activation.

    The MODULO CHILD inflatable life jacket can be supplied with the following models:
    DAA 2 x UML-MK5, automatic activator;

    On all SOLAS VSG inflatable life jackets there are 2 oral tubes.
    ACCESSORIES ON REQUEST: automatic emergency light

    SPARE PART: VSG reset kit with 24g canister. Double crotch pad.

    REVISION: The revision for this inflatable life jacket is mandatory every 12 months.

    The case of our devices can be customised with writing or company logos.

    In compliance with the LSA Code and SOLAS standards, life jackets must be equipped with Solas signal lights.

  • TYPES OF ACTIVATION

    Automatic activation

    Automatic: in the event of a fall into the sea, the system is submerged and activates autonomously, within 5 second, the inflation of the buoyancy chamber. Automatic activation is possible with the UML MK5 salt activator, through the dissolution of a water-soluble tablet, or with the hydrostatic activator Hammar MA1 through the pressure generated by immersion in water for at least 10 cm.

    Manual activation

    The system is activated through the draft of the appropriate lever. It comes with the manual activator UML MICROMANUAL and it will activate exclusively by hand.

TYPES OF ACTIVATION

Automatic activation

Automatic: in the event of a fall into the sea, the system is submerged and activates autonomously, within 5 second, the inflation of the buoyancy chamber. Automatic activation is possible with the UML MK5 salt activator, through the dissolution of a water-soluble tablet, or with the hydrostatic activator Hammar MA1 through the pressure generated by immersion in water for at least 10 cm.

Manual activation

The system is activated through the draft of the appropriate lever. It comes with the manual activator UML MICROMANUAL and it will activate exclusively by hand.
