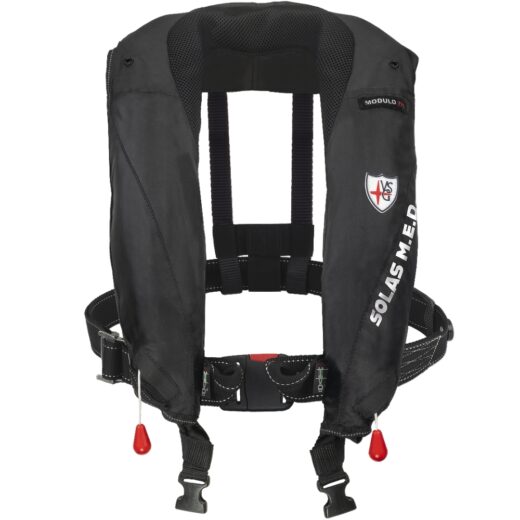

INFLATABLE LIFEJACKET – SOLAS – MODULO 275 – 310 N – DAA – HX

Activation

Activator Type

This product is currently out of stock and unavailable.

Buy now

Description

Inflatable Life Jacket for Adults. Homologated and certified according to SOLAS M.E.D., dual buoyancy chamber, three-dimensional X3D system, made of PA 420 PU COATED fabric with electronically controlled high-frequency welds. The system ensures rapid and immediate rotation of the body in water.
High-strength fabric cover with zip closure, front loops to facilitate manual activation, and soft neck strap to ensure maximum freedom and mobility on board during navigation maneuvers.
Equipped with Buddy System.
Waist strap running through the cover for maximum comfort, freedom, and mobility on board during navigation.

Equipped with ISO 12401 certified harness, front attachment for safety strap. Fitted with double leg straps.
Available with Double Automatic Activator (DAA), Double Automatic and Manual Activator (DAAM), Single Automatic Activator (SAA).

Buoyancy Chamber ACTIVATION SYSTEMS Automatic activation (self-inflating life jacket): in case of falling into the sea, the system is submerged and autonomously activates the inflation of the buoyancy chamber. It is also possible to manually activate the life jacket. Manual activation: the system is activated by pulling the designated lever. Oral inflation: to inflate the chamber, simply blow into the oral tube. This feature is present in both self-inflating jackets and those that are manually activated only.

The MODULO 275 HX inflatable lifejacket can be equipped with the following models:

(DAA) 2 x UML-MK5, automatic activator;

(DAAM) 1 x UML-MK5 + 1 x UML MICROMANUAL, automatic activator + manual activator;

(SAA) 1 x UML-MK, automatic activator.

Two oral tubes are always present on all SOLAS VSG inflatable lifejackets.

ACCESSORIES ON DEMAND
Sprayhood
SOLAS emergency automatic light
Antiflame cover.

SPARE PARTS
VSG rearming kit with 60 g CO2 gas cylinder.
Double crotch strap.

SERVICE
The mandatory service of this inflatable lifejacket is each 12 months.

Cases of our devices can be customized with any text or company logo.

In compliance with the LSA Code and SOLAS standards, life jackets must be equipped with Solas signal lights.

02130_25#ENG#G.pdf Scarica
02130_1_HX#_#C#SOLAS M.E.D. MODULO B 2021.pdf Scarica
  • Description

    Inflatable Life Jacket for Adults. Homologated and certified according to SOLAS M.E.D., dual buoyancy chamber, three-dimensional X3D system, made of PA 420 PU COATED fabric with electronically controlled high-frequency welds. The system ensures rapid and immediate rotation of the body in water.
    High-strength fabric cover with zip closure, front loops to facilitate manual activation, and soft neck strap to ensure maximum freedom and mobility on board during navigation maneuvers.
    Equipped with Buddy System.
    Waist strap running through the cover for maximum comfort, freedom, and mobility on board during navigation.

    Equipped with ISO 12401 certified harness, front attachment for safety strap. Fitted with double leg straps.
    Available with Double Automatic Activator (DAA), Double Automatic and Manual Activator (DAAM), Single Automatic Activator (SAA).

    Buoyancy Chamber ACTIVATION SYSTEMS Automatic activation (self-inflating life jacket): in case of falling into the sea, the system is submerged and autonomously activates the inflation of the buoyancy chamber. It is also possible to manually activate the life jacket. Manual activation: the system is activated by pulling the designated lever. Oral inflation: to inflate the chamber, simply blow into the oral tube. This feature is present in both self-inflating jackets and those that are manually activated only.

    The MODULO 275 HX inflatable lifejacket can be equipped with the following models:

    (DAA) 2 x UML-MK5, automatic activator;

    (DAAM) 1 x UML-MK5 + 1 x UML MICROMANUAL, automatic activator + manual activator;

    (SAA) 1 x UML-MK, automatic activator.

    Two oral tubes are always present on all SOLAS VSG inflatable lifejackets.

    ACCESSORIES ON DEMAND
    Sprayhood
    SOLAS emergency automatic light
    Antiflame cover.

    SPARE PARTS
    VSG rearming kit with 60 g CO2 gas cylinder.
    Double crotch strap.

    SERVICE
    The mandatory service of this inflatable lifejacket is each 12 months.

    Cases of our devices can be customized with any text or company logo.

    In compliance with the LSA Code and SOLAS standards, life jackets must be equipped with Solas signal lights.

  • TYPES OF ACTIVATION

    Automatic activation

    Automatic: in the event of a fall into the sea, the system is submerged and activates autonomously, within 5 second, the inflation of the buoyancy chamber. Automatic activation is possible with the UML MK5 salt activator, through the dissolution of a water-soluble tablet, or with the hydrostatic activator Hammar MA1 through the pressure generated by immersion in water for at least 10 cm.

    Manual activation

    The system is activated through the draft of the appropriate lever. It comes with the manual activator UML MICROMANUAL and it will activate exclusively by hand.

TYPES OF ACTIVATION

Automatic activation

Automatic: in the event of a fall into the sea, the system is submerged and activates autonomously, within 5 second, the inflation of the buoyancy chamber. Automatic activation is possible with the UML MK5 salt activator, through the dissolution of a water-soluble tablet, or with the hydrostatic activator Hammar MA1 through the pressure generated by immersion in water for at least 10 cm.

Manual activation

The system is activated through the draft of the appropriate lever. It comes with the manual activator UML MICROMANUAL and it will activate exclusively by hand.
