Description

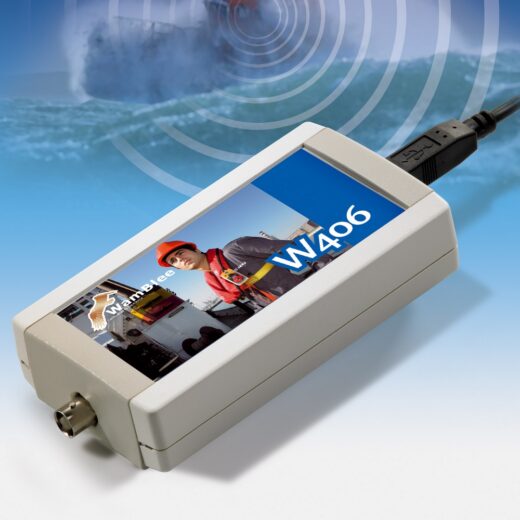

The W406 receiver is a receiver specifically designed for MOB applications in AMRD group B.
The recent AMRD regulation divides MSLD devices into two groups.
Group A defines radio locators capable of operating simultaneously in DSC and AIS mode
while group B defines free-license devices that can be used between MOB and vessel.
Easy to install, the W406 receiver is able to receive messages transmitted by Wamblee MOB W422 devices.
process the information received and convert it into AIVDM messages that can be displayed on any chart plotter equipped with an NMEA interface.
The information received (such as the alarm and the position of the person overboard) can be directly displayed on the screen of your cartographic system.
The receiver requires the installation of a VHF antenna.

TECHNICAL FEATURES o GMSK blackbox2 direct synthesis receiver
o Operating frequency: 160.9 MHz (programmable)
o Degree of protection: IP55
o Interface: NMEA 0183, USB type A port (Service)
o Power supply: 12-24Vdc, 0.15 A

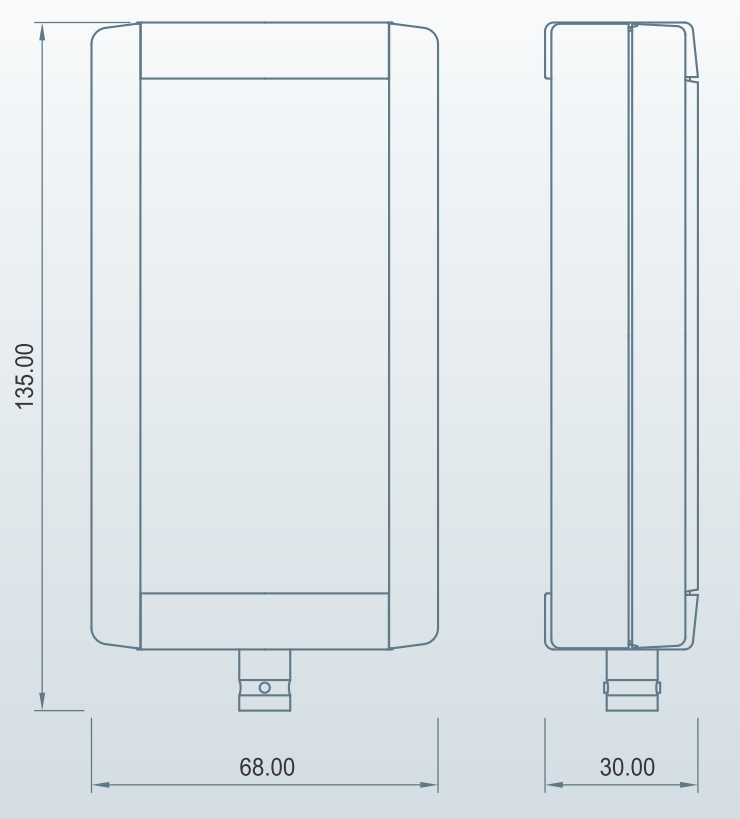

o Dimensions: 134 x 68 x 30 mm
o Warranty: 2 Years
